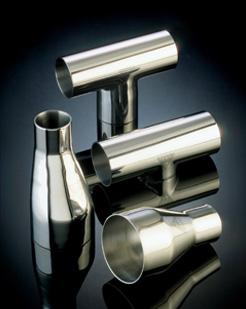

Reducers & Tee

Made of AISI 304L and 316L stainless steel.

Made from pipe electrojointed, cold-rolled and solution heat-treated in controlled atmosphere.

Gauged inside and outside to obtain good roundness.

Faced on the ends to ensure perfect right angles of planes.

Reducers turned on the cylindrical parts in conformity with dimensional tolerance levels stipulated by the main international standards.

Uniform wall thickness allows for orbital welding.

Specification:

1) Standard type:
    a) DIN, SMS, IDF, 3A.

2) Material: SS304L & SS316L.

3) Standard finish:
   a) 120 grain external polishing and internal glazing            to DIN standards.
    b) 120 grain external and internal glazing to SMS,               BS, ISS standards.
     c) On request for other finishes.

4) Available sizes: ½" to 4". (Up to 8" on request)
