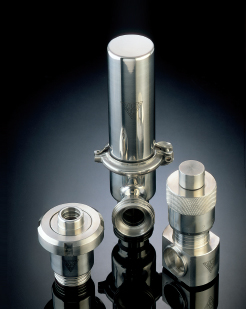

Flow Control Valve

Made of AISI 304L and 316L stainless steel.

High strength construction from solid stainless steel block.

Flow control by screwing of the external adjusting device.

Internal stem of chrome-plated stainless steel. EPDM Gasket.



Specification:

1) Standard type:
    a) DIN, SMS, RJT, IDF.

2) Material: SS304L & SS316L.

3) Standard finish:
    a) 150 grain external polishing and internal glazing.
    b) On request for other finishes.

4) Available sizes: DN25 to DN76.

5) Maximum operating pressure: 15 bars.



Relief Valve

Made of AISI 304L and 316L stainless steel.

Pressure control element located inside valve body to prevent accidental operation.

Specification:

1) Standard type:
    a) DIN, SMS, RJT, IDF.

2) Material: SS304L & SS316L.

3) Standard finish:
    a) 120 grain external polishing and internal glazing.
    b) On request for other finishes.

4) Available sizes: DN25 to DN80.

5) Adjustable from 0 to 5 bars.
   (On request, for adjustable up to 12 bars).



Check valve

Made of AISI 304L and 316L stainless steel.

High strength construction from solid stainless steel block.

On request for PTFE sealing gasket or other elastometers

Equipped with low-pressure springs allowing either vertical or horizontal valve operation.

Specification:

1) Standard type:
    a) DIN, SMS, RJT, IDF.

2) Material: SS304L & SS316L.

3) Standard finish:
    a) 120 grain external polishing and internal glazing.
    b) On request for other finishes.

4) Available sizes: DN25 to DN104.

5) Maximum operating pressure: 10 bars.
